PE Protective Film
- A self-adhesive temporary surface protection film made from polyethylene resin and pressure-sensitive adhesive, it's lightweight, flexible and cost-effective.
- It is widely used for protecting the surfaces of various indoor and outdoor boards and profiles against scratches and dust during transportation and installation.
- 30~150 ±1μm thickness
- 0.2~20 N peel strength
- Easy application and clean removal
- UV, freeze and heat resistant
- Custom colors, thickness and adhesive levels
- Surface supports eight-color printing
By Adhesion Strength
Based on peel strength (N/25mm, 180°).

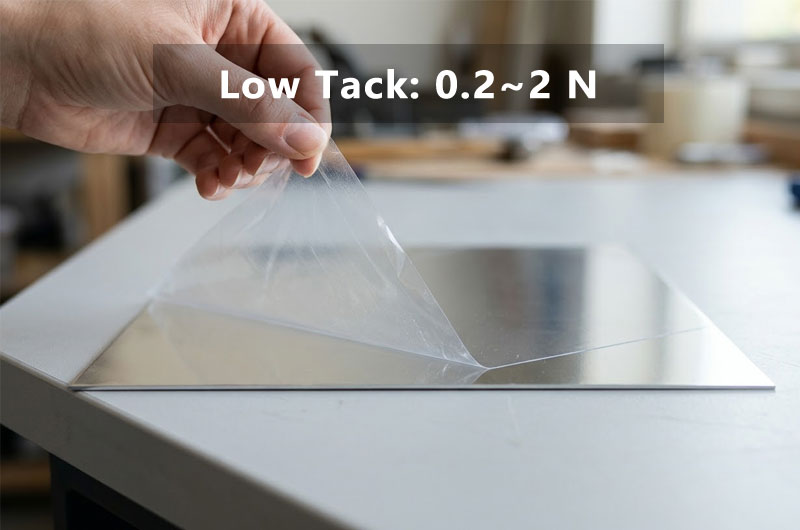

Low Tack
- 0.2~2 N.
- Compatible PSA models: FR01 / FR04 / FR07.
- Ideal for smooth and delicate surfaces.
- Suitable for short-term surface protection.

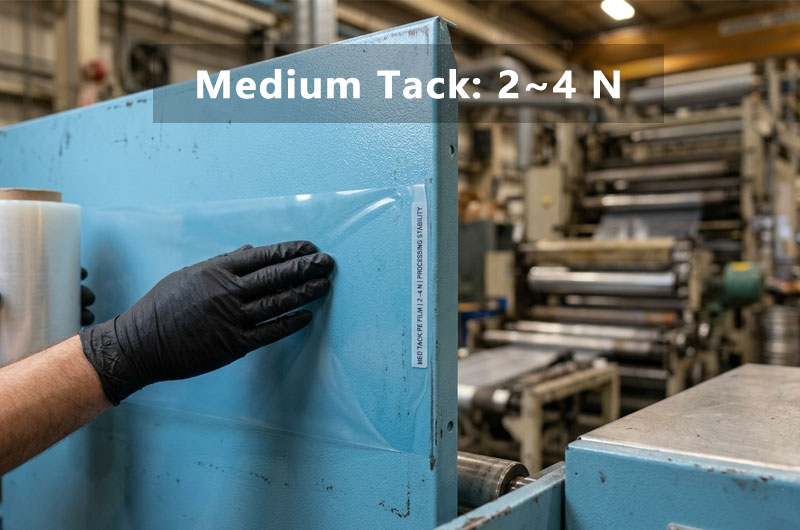

Medium Tack
- 2~4 N.
- Compatible PSA models: FR04 / FR102-2 /FRw78-1.
- Provides stable adhesion during processing.
- Suitable for coated metal sheets, plastics, and glass.
High Tack
- 4~10 N.
- Compatible PSA models: FR094 / FR-93T.
- Strong adhesion for textured or slightly rough surfaces.
- Withstands bending, cutting processes.

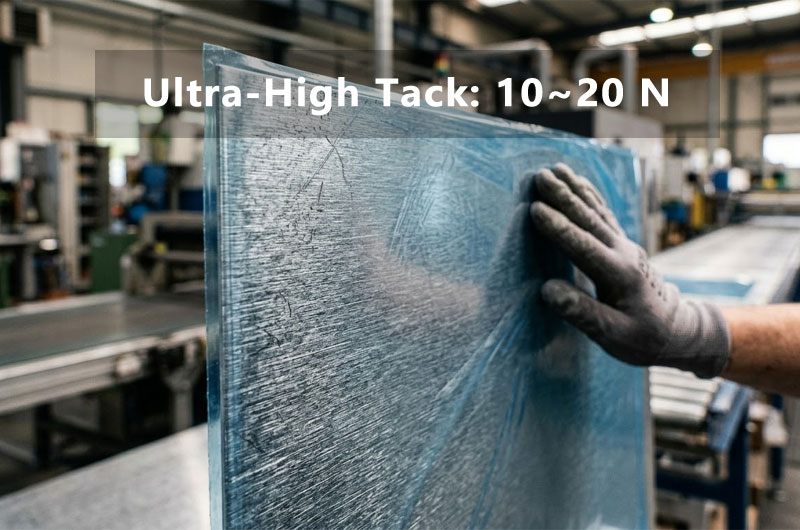

Ultra-High Tack
- 10~20 N.
- Compatible PSA models: FR091-6 / FR-97T-2 / FR-002.
- Maximum holding power for rough surfaces.
- Designed for heavy processing and extreme conditions.

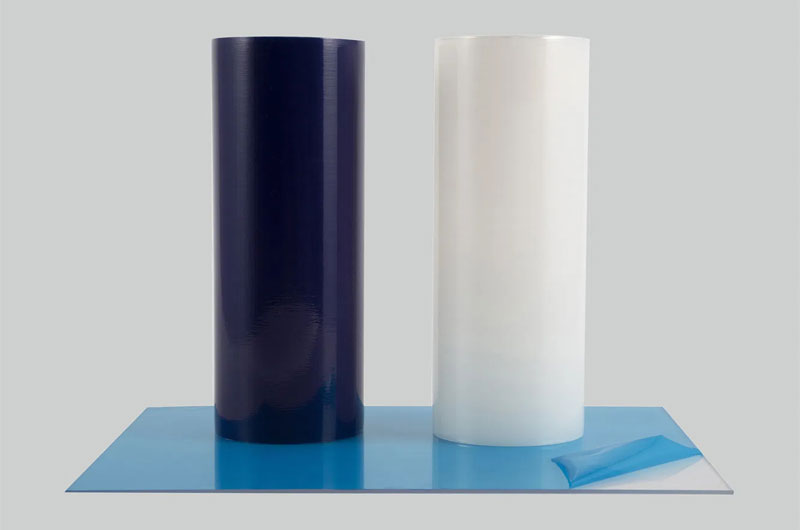

By Thickness
Measured in microns (μm).
1. Thin PE Protective Film
- 30 – 50μm
- Easy application and smooth removal.
- Ideal for delicate, low-risk surfaces.
2. Medium PE Protective Film
- 50~100μm
- Balanced protection and flexibility.
- Suitable for general processing and handling.
3. Thick PE Protective Film
- 100~150μm
- Strong impact and abrasion resistance.
- Designed for heavy-duty processing protection.
By Colors & Transparency

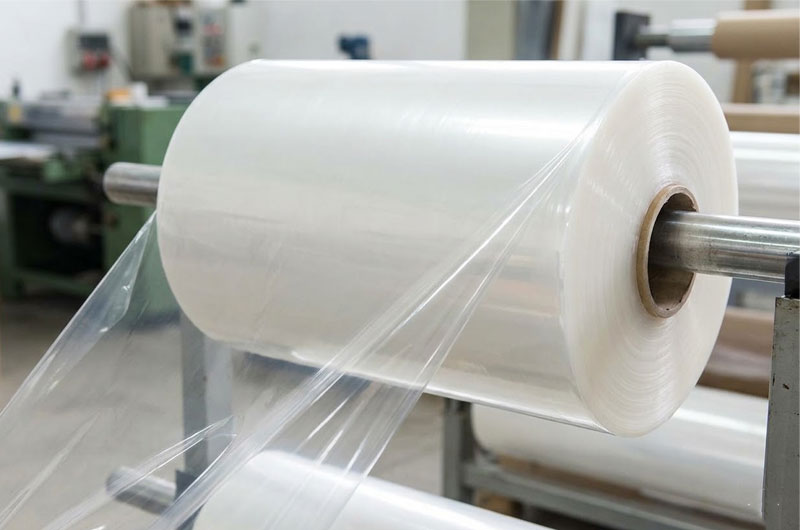

Transparent / Clear
Allows full surface visibility while protecting against scratches, dust, and light contamination.

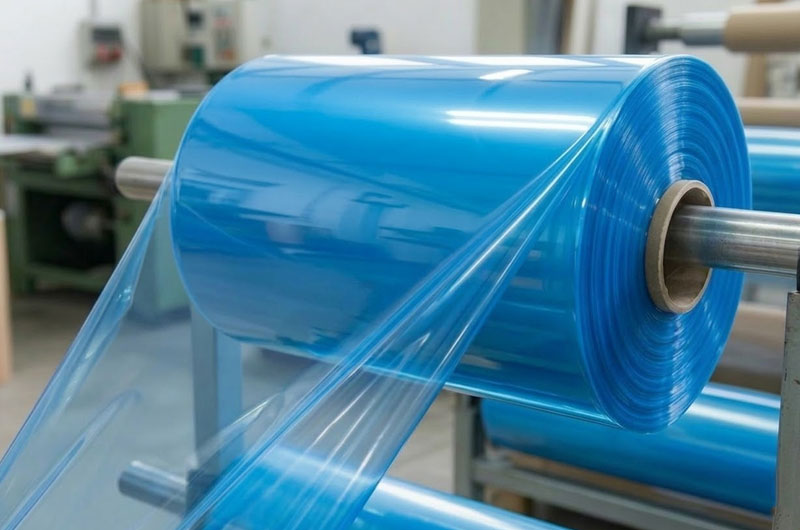

Blue
Most common industrial color, easy identification, ideal for industrial or construction applications.

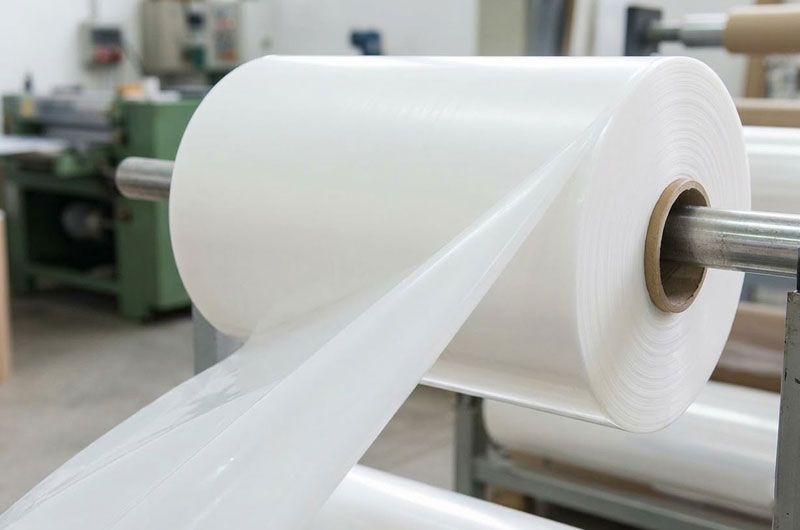

White
Clean, opaque appearance offering strong contrast, ideal for branding, printing, and surface masking.

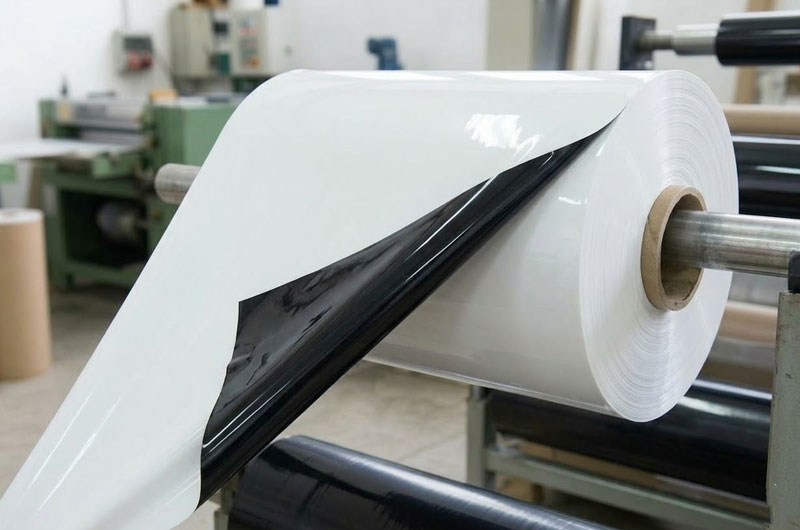

Black & White
White side reflect sunlight and reduce heat absorption and black side for UV protection.
Manufacturing Process & Quality Control
Our PE protective films are certified manufactured and tested under a strictly controlled, step-by-step process.
1. Raw Material Selection
High-quality polyethylene base films and pressure-sensitive adhesives are selected based on application requirements.
2. Printing
Patterns, logos, or instructions are printed onto the PE film surface.
3. Lamination
PE film is bonded with additional layers to improve strength and durability.
4. Coating
Apply adhesive layer to ensure proper surface protection and adhesion.
5. Slitting
Cut large film rolls into narrower widths for specific applications.
6. Quality Inspection & Performance Testing
Each production batch undergoes strict quality checks, including:
- Thickness and width tolerance inspection.
- Peel adhesion testing.
- Tensile strength testing.
- Aging resistance testing.
- Residue test after removal.
Our Featured PE Protective Films

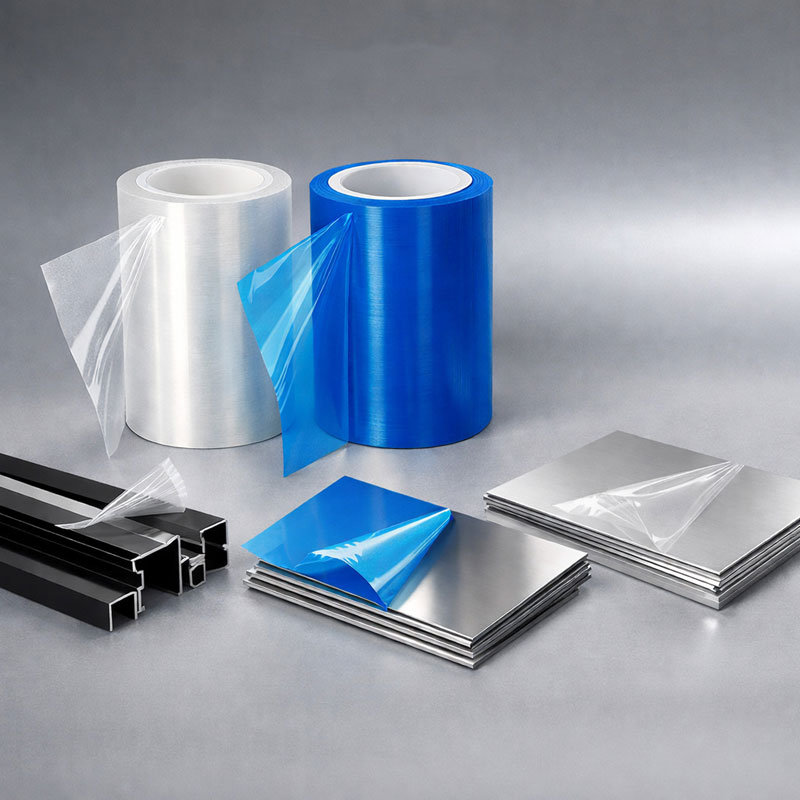

SM-1004-1
- Transparent / Blue
- 30 / 40 / 50 / 60 / 70μm thickness
- 0.2 – 0.8N 180° peel strength
- Compatible PSA models: FR-01 / FR-04
- Suitable for short-term protection of smooth stainless steel and aluminum surfaces.

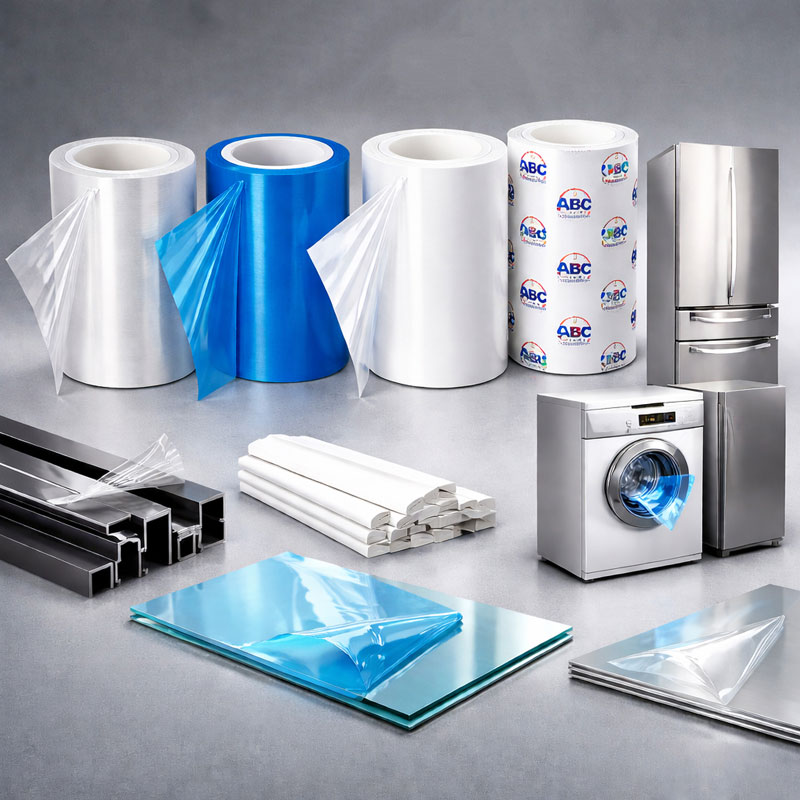

SM-1004-2
- Transparent / Blue / Milk White
- 30 / 40 / 50 / 60 / 70μm thickness
- 1 – 2N 180° peel strength
- Compatible PSA models: FR-04 / FR-102
- Suitable for relatively flat surfaces (available in weather-resistant outdoor versions).

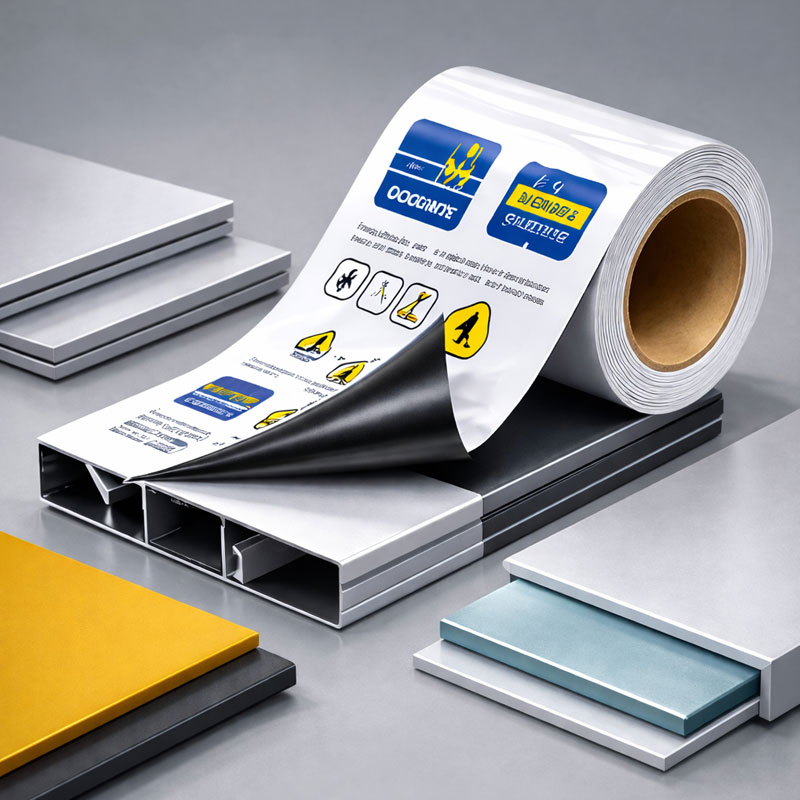

SM-1004-3
- Black & white
- 30 / 40 / 50 / 60 / 70μm thickness
- 2 - 4N 180° peel strength
- Compatible PSA models: FR-w78 / FR-04
- Suitable for flat surfaces, can be printed with logos/installation instructions.

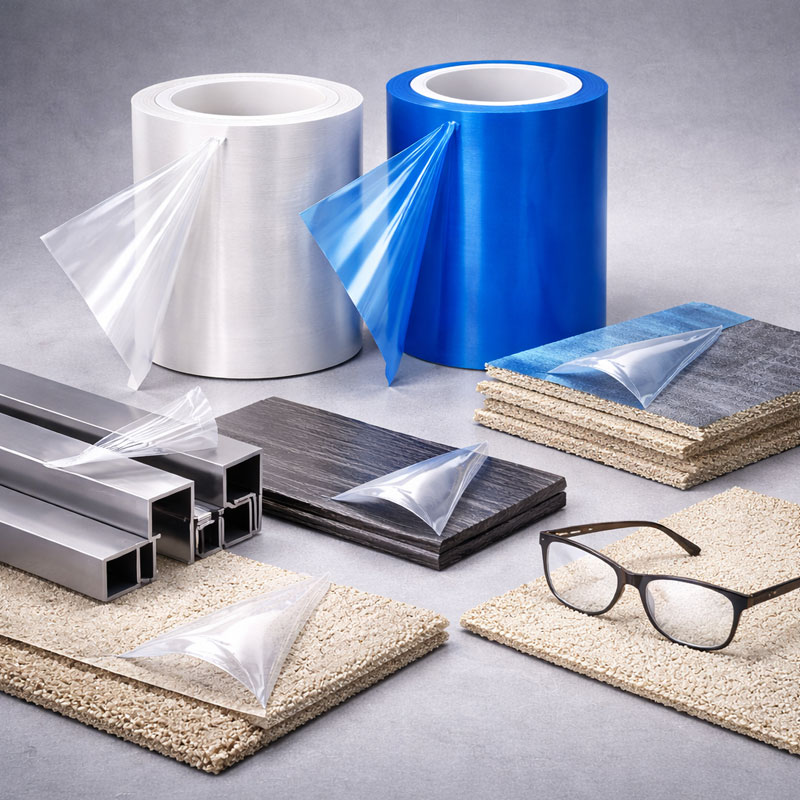

SM-1004-4
- Eight-color printing surface
- 30 / 40 / 50 / 60 / 70μm thickness
- 4 - 8N 180° peel strength
- Compatible PSA models: FR-091-6 / FR-094
- Suitable for rough surfaces like frosted finishes and textured patterns.

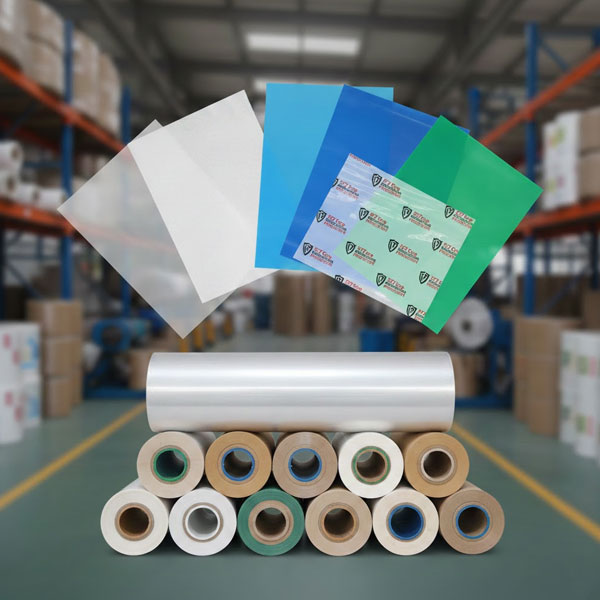

Customization Options
Our PE protective film can be fully customized with the following options:
Film Thickness
Customize precise thickness for optimal protection, strength, and ease of application.
Adhesion Level
Choose adhesion strength to match surface type without leaving residue.
Color
Customize film color for visibility, aesthetics, or product identification.
Printing
Add branding, logos, or usage instructions directly on the protective film.
Roll Width & Length
Specify roll dimensions to suit production needs and application efficiency.
Core Size
Select core diameter compatible with dispensers and handling equipment.
Applications & Industries

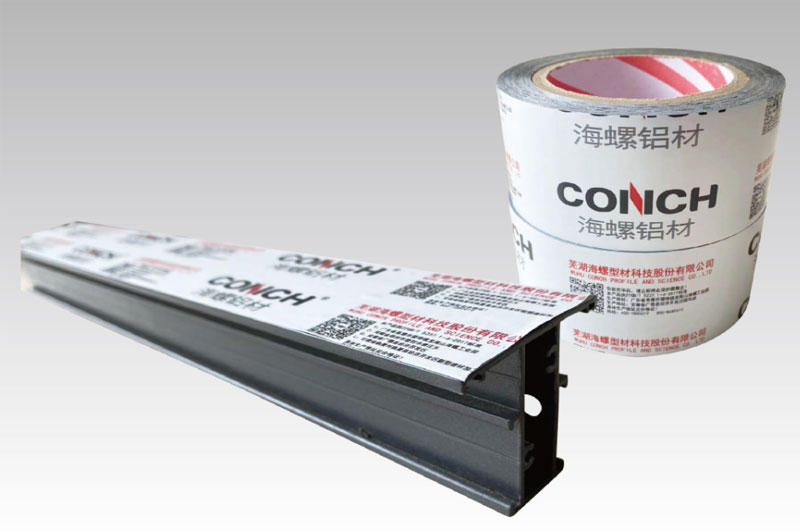

Aluminum Profile
For manufacturers and construction companies, PE protective film is a simple but highly effective quality control solution.

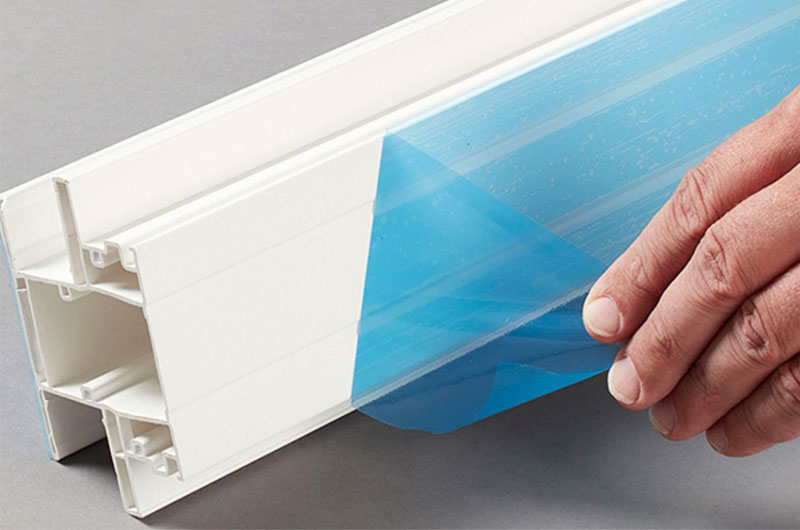

PVC / U-PVC Profile
Using PE protective film is an effective and economical way to preserve product quality and enhance customer satisfaction.

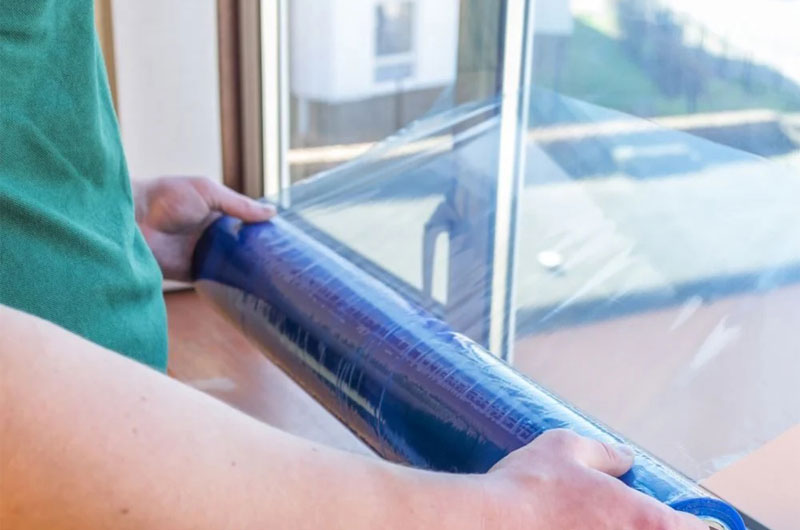

Glass Surface
In modern glass processing and construction industries, PE protective film has become an essential solution for reliable surface protection.

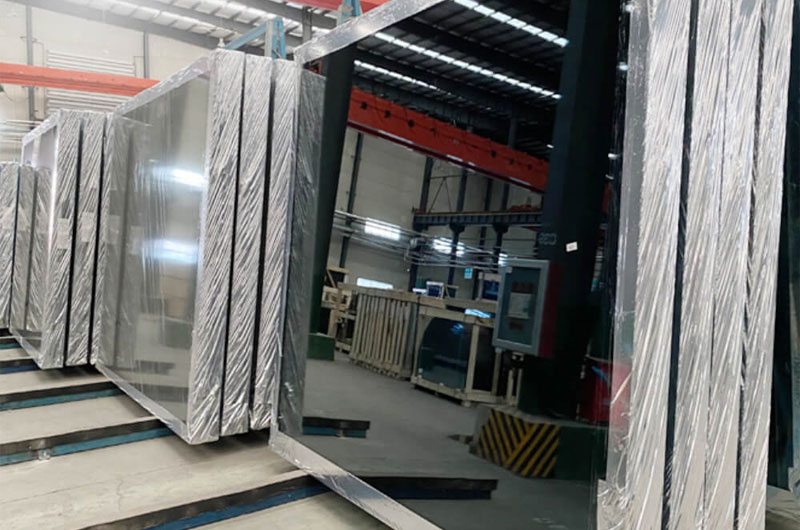

Low-E Glass
PE protective film shields Low-E glass frame edges sealing, scratches and abrasion, and safeguarding sensitive Low-E coatings.

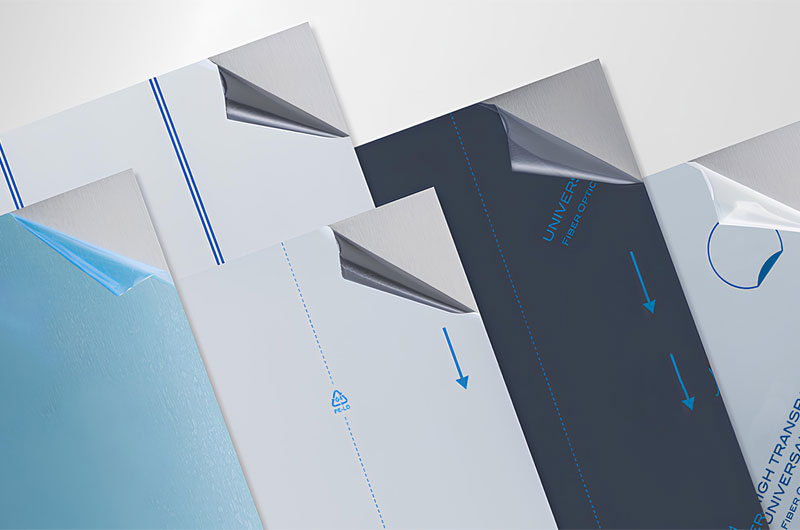

Sheet Metal
Preventing scratches, oxidation, and contamination on materials such as stainless steel, aluminum, and coated metals.
Marble / Stone
Designed for delicate and porous surfaces, it helps maintain the natural appearance while allowing clean removal without damaging the surface.
FAQs
Our PE protective film is available in thicknesses ranging from 30μm to 150μm.
Common categories include:
- Thin: 30–50μm
- Medium: 50–100μm
- Thick: 100–150μm
Our PE protective film is available in four adhesion levels:
- Low Tack: 0.2–2N
- Medium Tack: 2–4N
- High Tack: 4–10N
- Ultra-High Tack: 10–20N
Our PE protective film is suitable for a wide range of surfaces, including:
- Stainless steel
- Aluminum profiles
- PVC and uPVC profiles
- Glass and Low-E glass
- Sheet metal
- Marble and stone
- Plastic sheets and coated panels
Yes. Selected models are UV-resistant and weather-resistant, making them suitable for outdoor applications and temporary exterior protection.
Available colors include:
- Transparent / Clear
- Blue
- White
- Black & White
Custom colors are also available upon request.
Yes. The film supports up to eight-color surface printing for:
- Company logos
- Branding
- Installation instructions
- Product identification
We offer customization for:
- Film thickness
- Adhesion level
- Color
- Printed designs
- Roll width and length
- Core size
