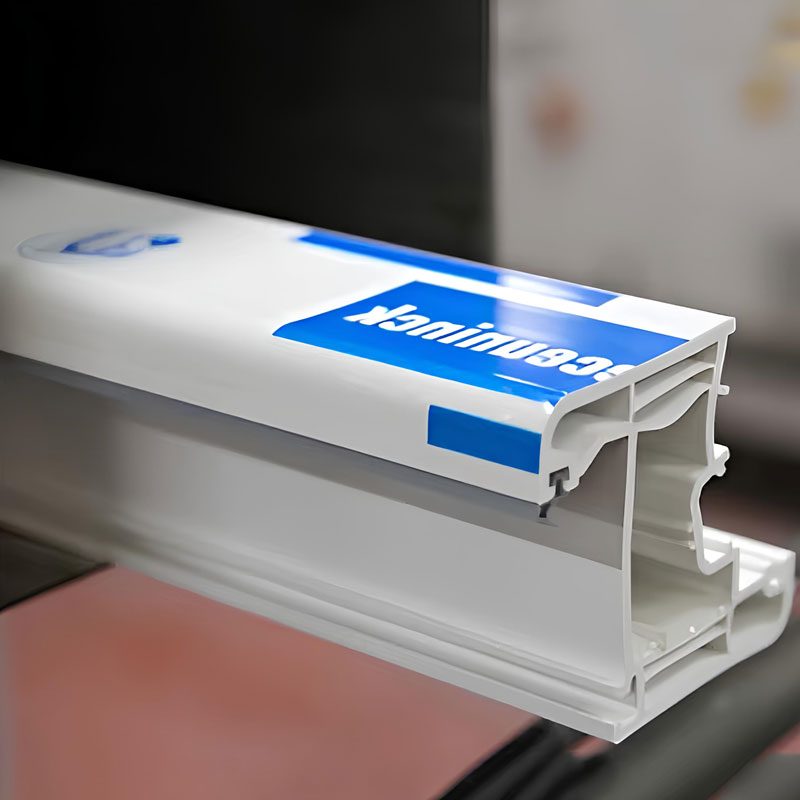

PVC Profile Protective Film
- PVC Profile Protective Film is a specially engineered surface protection material designed to safeguard PVC (polyvinyl chloride) profiles during manufacturing, transportation, storage, and installation.
- It forms a temporary protective barrier that prevents:
- Scratches and abrasions
- Dust and contamination
- UV degradation
- Processing damage
Why Choose Our PVC Profile Protective Films?
1. Film Structure
The structure of our PVC profile protective films usually includes these layers:
- Film backing layer: Usually PE-based film material.
- Pressure-sensitive adhesive layer: designed for appropriate adhesion on PVC profile surfaces.
- Printed Surface Layer: for logo, brand, and identification
2. Main Features
- Stable adhesion for PVC surfaces
- Easy application and removal
- Custom thickness, width, and length available
- Printable surface for logo or branding
- Suitable for different PVC profile shapes and finishes
3. Custom Options
- Custom thickness, width, length and color
- Adhesion level adjustment
- Logo printing (up to 8 colors)
- Special formulations (UV-resistant, anti-static)

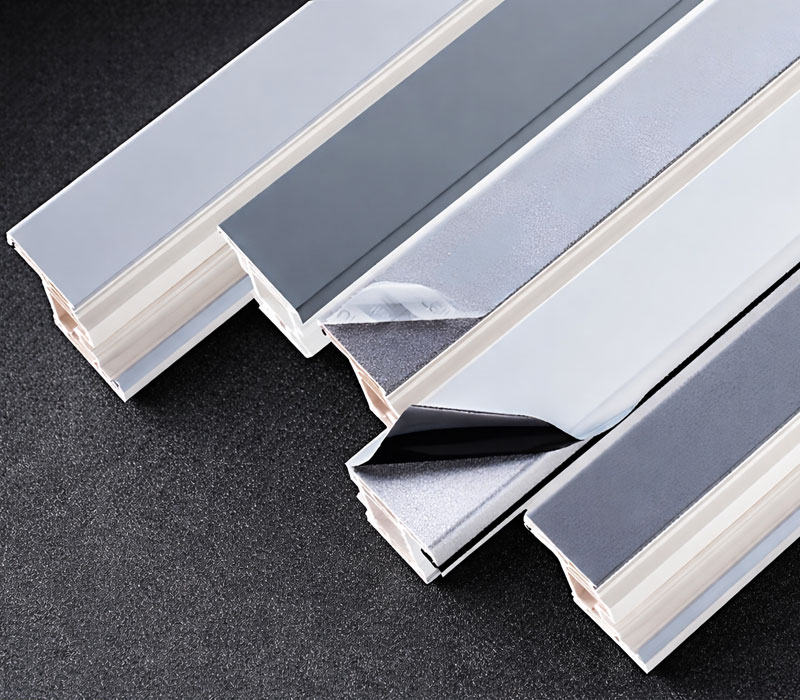

Our PVC Profile Protective Film Specifications
| Color | Thickness | 180° Peel Strength (N/25mm) |
|---|---|---|
| White with surface printing | 30μm / 35μm | 0.3-1.0N |
| Silver with surface printing | 65μm / 75μm | 0.3-1.0N |
| White with surface printing | 65μm / 75μm | 2.0-3.0N |
| Milk-white with surface printing | 60μm | 0.6-1.5N |
| Transparent with surface printing | 35μm | 0.3-1.0N |
| Black & white | 60μm | 0.3-1.0N |
Suitable for Different PVC Profile Surface Finish

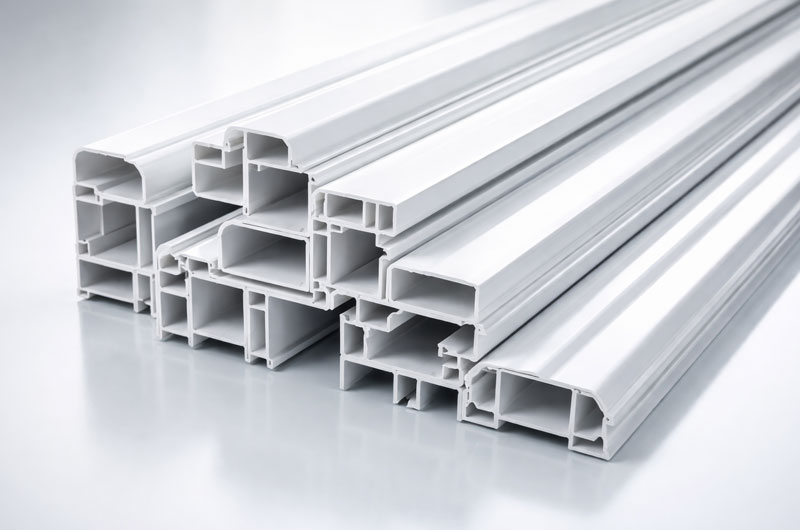

Smooth / High-Gloss
Flat, polished finish with consistent low surface energy, commonly used in window & door profiles.
- Recommended film solution:
- Low-tack or medium-tack adhesive film.
- PE protective film with smooth backing.

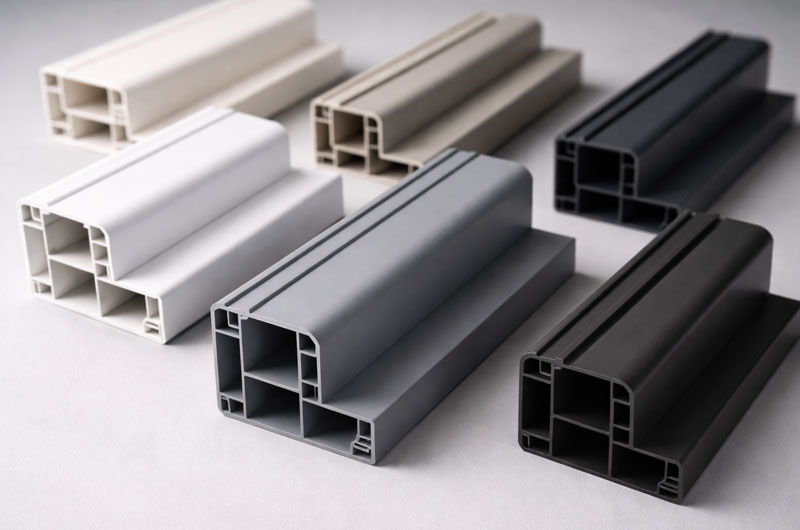

Matte / Satin
Low reflectivity, soft-touch appearance, slight surface roughness compared to gloss.
- Recommended film solution:
- Medium-tack adhesive film.
- Balanced adhesion to avoid edge lifting.

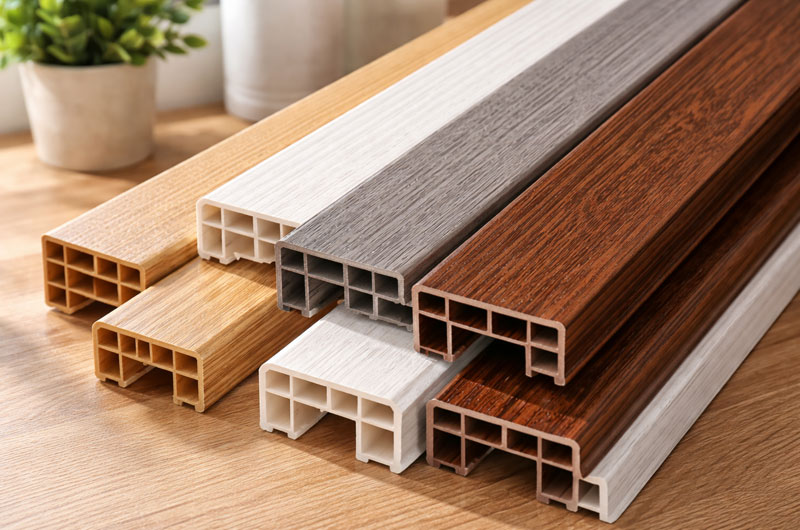

Textured / Embossed
Uneven surface (wood grain, brushed, embossed patterns), higher roughness and micro-gaps.
- Recommended film solution:
- High-tack adhesive protective film.
- Flexible film with strong conformability.

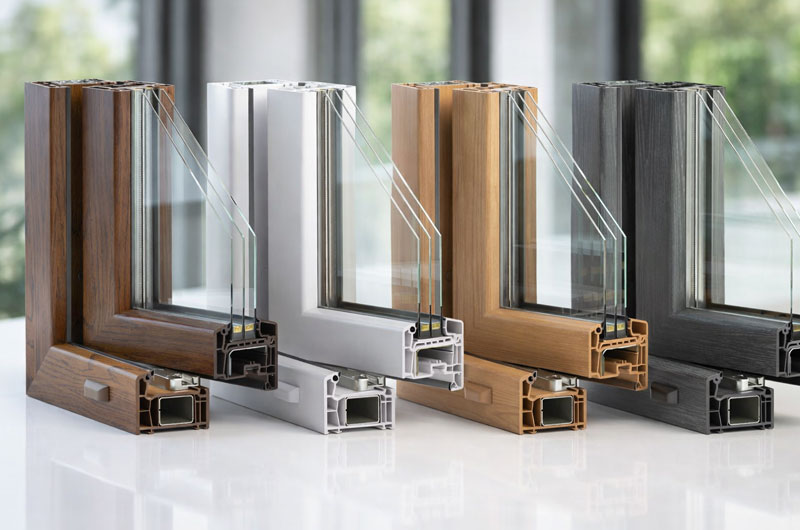

Foil-Laminated
Decorative films (wood grain, metallic, colored finishes), sensitive to scratches and abrasion.
- Recommended film solution:
- Film with high abrasion resistance.
- Customized adhesive (medium to high tack).

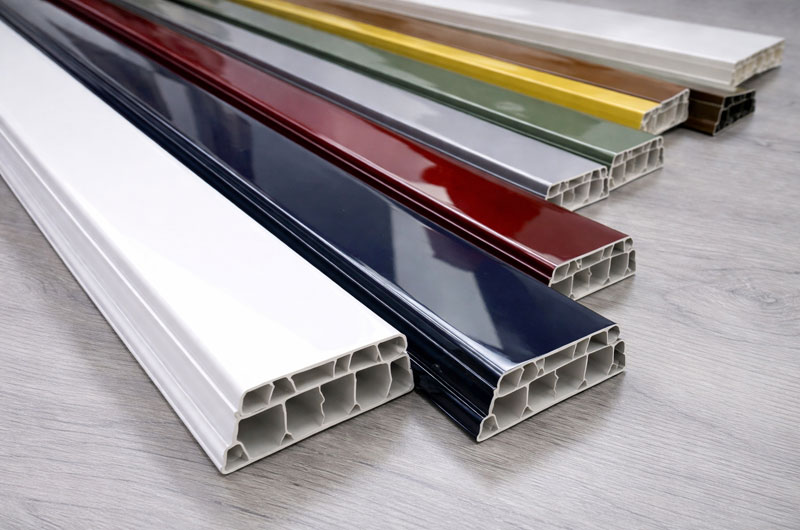

Painted / Lacquered
Can range from ultra-matte to high-gloss, sensitive to chemical interaction.
- Recommended film solution:
- Special acrylic adhesive system.
- Controlled adhesion (no aggressive bonding).

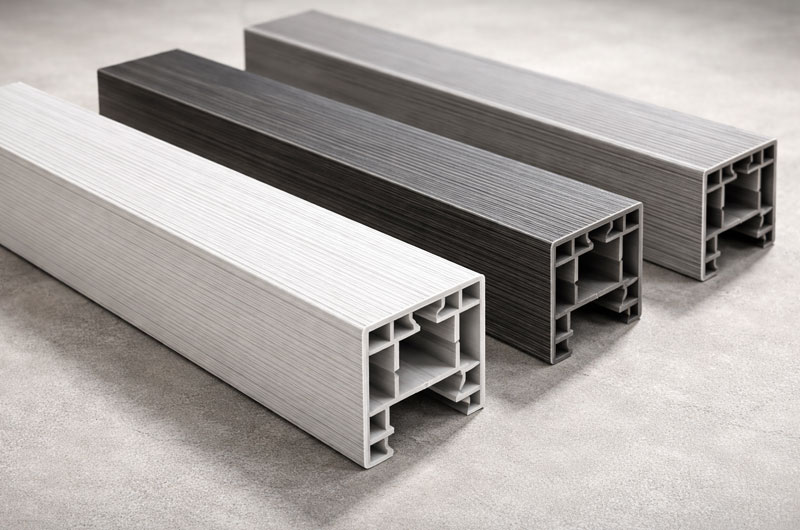

Brushed / Sanded
Mechanically treated surfaces (grinding, sanding), micro-rough texture.
- Recommended film solution:
- Film with strong mechanical grip.
- Medium to high-tack adhesive.
FAQs
High-quality polyethylene (PE) base films combined with specialized adhesives.
Common thickness ranges from 30 to 150 microns, customizable as needed.
Window frames, door profiles, decorative panels, and industrial PVC extrusions commonly require protection.
Yes, it is suitable for both, with UV-resistant options available for outdoor use.
Yes, it can be tailored for glossy, matte, laminated, or textured finishes.
Construction, window and door manufacturing, furniture, and building materials industries.
No, it is designed to withstand standard processing operations.
Consider the following:
- Surface type (smooth or textured)
- Required adhesion level
- Processing conditions (temperature, humidity)
- Storage duration
- UV exposure time
- Custom branding needs
